07. No-Code Runtime Components

Overview

FuzzySave includes a rich suite of plug-and-play MonoBehaviour components designed for level designers, technical artists, and teams seeking zero-code gameplay persistence. Simply attach these components to scene objects or UI prefabs to establish full save and load mechanics.

---

---

1. AutoSaveManager

The AutoSaveManager runs autonomously in the background to handle periodic saves and lifecycle triggers.

Inspector: [FuzzySave/Auto Save Manager]
├── Periodic Auto-Save:
│   ├── Enable Interval Save: [x]
│   ├── Interval Seconds: 300 (5 minutes)
│   └── Pause When TimeScale Zero: [x] (Skips saving while in Pause Menu)
├── Slot Management:
│   ├── Use Rolling Slots: [x]
│   ├── Rolling Slot Prefix: "autosave_"
│   └── Rolling Slot Count: 3 (Cycles: autosave_1 -> autosave_2 -> autosave_3)
└── Lifecycle Triggers:
    ├── Save On Scene Loaded: [ ]
    ├── Save On Application Pause: [x]
    └── Save On Application Quit: [x]

Key Highlights:

• Rolling Slots Protection: Instead of repeatedly overwriting a single file, the manager cycles through autosave_1, autosave_2, and autosave_3. If a player saves right before dying, previous checkpoints remain intact.
• TimeScale Zero Protection: When players open inventory or pause screens (Time.timeScale == 0), auto-saving is halted to avoid capturing broken game states.

---

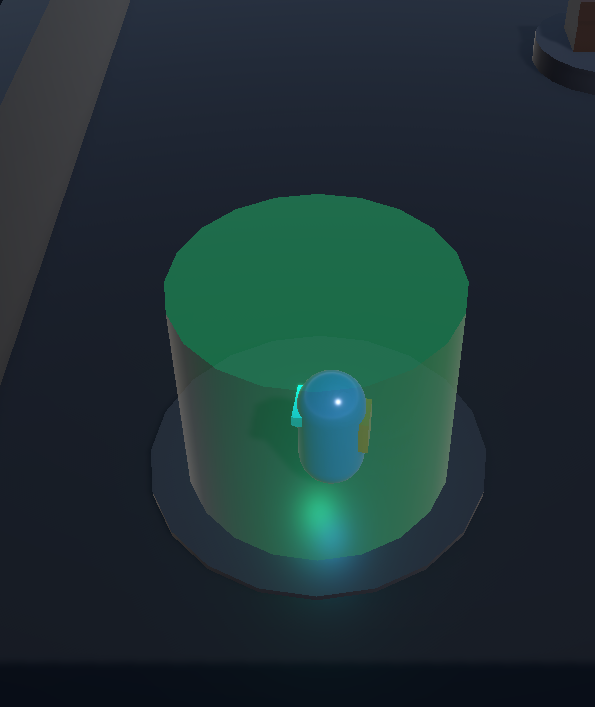

2. SaveTriggerZone

Attach SaveTriggerZone to any GameObject with a 2D or 3D Collider (isTrigger = true) to create checkpoints, level exit saves, or auto-load gates.

Features:

• Collider Support: Works with 3D (BoxCollider, SphereCollider) and 2D (BoxCollider2D, CircleCollider2D).
• Filtering: Filter by TargetTag (default: "Player") and LayerMask.
• Supported Actions: Save, Load, SaveGroup, LoadGroup, DeleteSlot, ClearAllSlots.
• Cooldown & One-Shot:
  • m_CooldownSeconds: Prevents double triggers when a player paces inside the zone.
  • m_OneShot: Ensures the checkpoint only activates once in its lifetime.
• Scene View Gizmos: Automatically draws colored 3D wire/solid gizmos in the Scene View:
  • Green: Save Action
  • Blue: Load Action
  • Red: Delete Action

---

3. SaveButtonBinding

Attach SaveButtonBinding to any standard Unity UI Button to convert it into a save or load button without writing click listeners.

Anti-Spam Lockout:

When saving or loading begins, SaveButtonBinding automatically sets button.interactable = false. Once the asynchronous operation completes, it re-enables the button, preventing players from spamming file writes.

---

4. SaveKeyBinding (Quick Save / Quick Load)

Provides PC keybinding support (Default: F5 for Quick Save, F9 for Quick Load):

• Internal cooldown protection (1.0s) to prevent rapid key hammering.
• Optional audio clips for successful save (m_SaveSound) and load (m_LoadSound).

---

5. SaveFeedbackUI

A completely autonomous visual notification component. Drop it onto any Canvas UI element or toast banner prefab:

• Zero Configuration: Automatically registers itself to global events on FuzzySaveManager.
• Smooth Fading: Controls a CanvasGroup with customizable fade-in and fade-out animations.
• Spinning Indicator: Rotates an icon transform (m_SpinnerIcon) during active I/O.
• State Messages: Shows "Saving...", "Game Saved", "Loading...", or "Operation Failed!".

---

6. SaveActionTrigger

A versatile bridge component exposing parameterless and parameterized public methods ready for connection with:

• UnityEvents (Button.onClick, UnityEvent)
• Animation Events (save game at the end of a cutscene animation)
• Timeline Signals
• Dialogue Systems (save progress when finishing a quest dialogue)

// Exposed public methods:
public void Save();
public void Load();
public void SaveActiveSlot();
public void LoadActiveSlot();
public void SaveSlot(string slotName);
public void LoadSlot(string slotName);
public void SaveGroup(string groupName);
public void LoadGroup(string groupName);
public void DeleteSlot(string slotName);
public void ClearAllSlots();
public void TriggerCustomEvent(string eventName);

---

7. FuzzySaveEventTriggerManager

Automatically instantiated upon scene load via [RuntimeInitializeOnLoadMethod], this persistent DontDestroyOnLoad runner monitors global event rules defined in FuzzySaveSettings.eventRules.

---

Next Chapter

Proceed to 08. Slot Metadata & GPU Thumbnails to explore rich slot data cards and zero-stall GPU screenshot capture.
